Fountain Pen Ink pH - A Comparison of Five Commercial Inks

A while back, there was some discussion about fountain pen ink pH. During that discussion, I offered to test inks and my friend from the Geekhack forum, CPTBadass, offered to donate some samples for my tests. I received samples from my good CPT in the mail, and I went about running tests. This post is the outcome of that work.

The Samples

Four samples were procured from CPTBadass and one was supplied by the author.

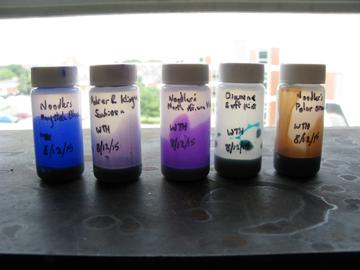

Noodler's Baystate Blue - a vibrant royal blue ink Rohrer & Klingner Scabiosa - an iron gall ink Noodler's North African Violet - an intense violet ink Diamine Soft Mint - an ink that appeared turquoise or aqua in the bulk solution Noodler's Polar Brown - a somewhat rust tinged brown ink Upon receipt, the samples were transferred to 20mL plastic scintillation vials. The original containers' opening was too small to accomodate the probe used in the pH experiments.

1. Shake Tests

Method

Samples in scintillation vials were given a quick shake and observed for fluid and surface characteristics. Results

Ink	Observations
Noodler's Baystate Blue	Ink left a thin layer coating the wall that persisted for a long time. This thin layer did not show any detail of the plastic surface. It produced bubbles,
Rohrer & Klingner Scabiosa	Ink left a very thin layer coating the wall that persisted for some time. The layer highlighted plastic imperfections of the bottle by contrast. It produced bubbles.
Noodler's North African Violet	Ink left a very thin layer coating the wall that persisted for some time. The layer highlighted some plastic imperfections of the bottle by contrast. It produced bubbles.
Diamine Soft Mint	Ink did not coat walls. Preferred cohesion and formed small islands of liquid on the plastic surface. It produced NO bubbles.
Noodler's Polar Brown	Ink left a very thin layer coating the wall that persisted for a long time. The layer highlighted plastic imperfections of the bottle by contrast. It produced many/large bubbles. Bubbles appeared to grow over time.

Discussion The surface coating indicates that there was interaction with the walls of the container. Since the plastic was either polyethylene or polypropylene, we expect the walls to be hydrophobic. The inks which wetted the surface well interacted with the plastic surface. Since bubbles were formed, we can assume that the interaction with the wall was due to surfactant in the ink reducing the surface energy allowing this prolonged contact. The lack of coating in the Diamine sample suggests that it is highly hydrophilic. The lack of bubbles suggests that no surfactant was added to the ink during manufacturing.

2. pH Test

Method

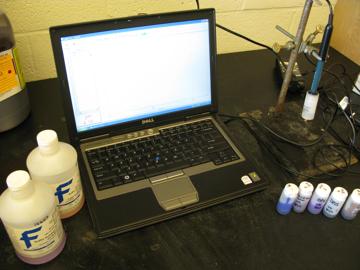

Samples were tested for hydrogen ion concentration using a Vernier pH probe connected to a computer running the logging software. The probe was calibrated immediately before the experiment with a pH 4.00 buffer standard (Fisher - methyl alcohol, formaldehyde, and potassium hydrogen phthalate) and a pH 10.00 buffer standard (Fisher - disodium EDTA dihydrate, potassium carbonate, potassium borate, potassium hydroxide). The lab temperature was 25C, and the standard pH did not need adjusted from the label value based on this temperature.

Results

Ink	pH
Noodler's Baystate Blue	3.97
Rohrer & Klingner Scabiosa	2.33*
Noodler's North African Violet	4.60
Diamine Soft Mint	4.00
Noodler's Polar Brown	8.78

Discussion

The majority of the inks were slightly acidic in nature, and the Polar Brown ink was slightly basic. The iron gall based ink was quite acidic. This ink pH is marked with an asterisk(*) since the pH was not stable. The value continually drifted downward, trending toward acidity. The value used here was the observed pH value after 15 minutes of attempted stabilization. After the experiments were complete, the pH probe was observed to be slightly discolored. To determine how this effected the results, the standards were measured with the discolored probe. The 4.00 buffer measured 3.74, and the 10.00 buffer measured 9.88. This indicates that the results are probably skewed downward by ~0.25 pH units. The results were not corrected for this error, since it would be difficult to quantify the error without much experimentation. The probe was cleaned by soaking in 2% nitric acid for 30 minutes. After this time, the probe was deemed 'clean' and returned to storage. The results of this experiment should clear up a few misconceptions. Notably, none of the inks in this less than comprehensive test were pH neutral. Some sources discussed previously make claims based on the acid or base nature of inks based on brand. Clearly, this is not a wise assessment. The brand with three different inks in the test (Noodler's) showed a wide range of pH values. Some outside sources suggest that acidic inks may damage pens. Most of the inks tested were acidic. No metal based tests were performed in this experiment, but this author believes that the correlation between metal pitting and acid content of an ink may be spurious.

3. Solvent Tests

Method

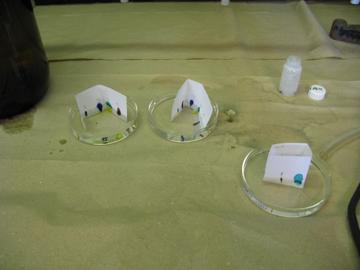

In this test, a small quantity of ink was deposited onto a strip of printer paper (Staples Brand) and partially submerged in solvent. The ink was applied to the paper by smearing one or two drops from a disposable plastic pipette on the paper. All labels on the samples were written in pencil. The ink was allowed to dry then tested. Most strips were folded so they would stand and set in a petri dish with the testing solution for five minutes. These tests were broken up into aqueous, organic, and chlorinated solvent groups to prevent unwanted reactions.

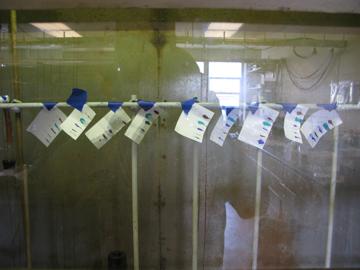

The wet papers were then taped to a rail in the hood to dry.

One strip was tested under a 18.4 W long wave UV lamp for one hour. One strip was left as a control. Results

Control

The numbers represent the inks Noodler's Baystate Blue, Rohrer & Klingner Scabiosa, Noodler's North African Violet, Diamine Soft Mint, and Noodler's Polar Brown respectively. The inks were not applied evenly, and some spreading, especially in samples 3-5 was due to large drops. The Polar Brown ink naturally feathers a great deal on this paper, and the Scabiosa and North African Violet inks showed some feathering. The Soft Mint ink naturally spread, but did not show feathering.

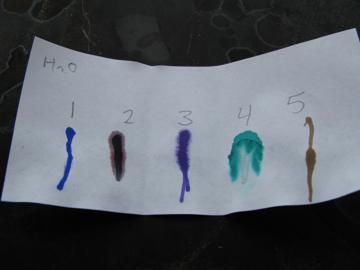

Water

1	2	3	4	5
minimal feathering	feathering	feathering	spread and loss	No Change (NC)

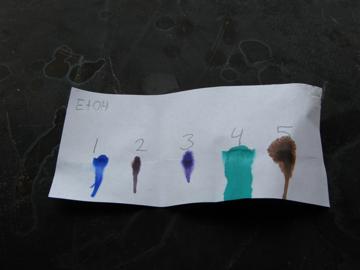

Ethanol

1	2	3	4	5
upward drift	some upward spread	upward drift	upward drift	edge reddening

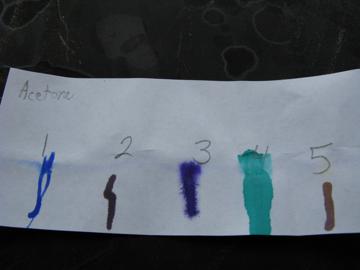

Acetone

1	2	3	4	5
some spread	NC	feathering	upward drift	NC

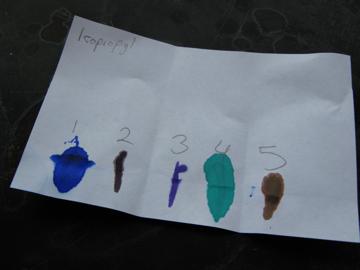

Isopropanol

1	2	3	4	5
upward drift	some feathering	some feathering/drift	some drift	NC

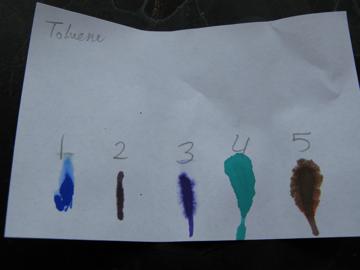

Toluene

1	2	3	4	5
upward drift	NC	minor drift	NC	edge reddening

Nitric Acid (~4%)

1	2	3	4	5
gone, yellow edge	almost gone, blue edge	almost gone, green edge	gone	NC

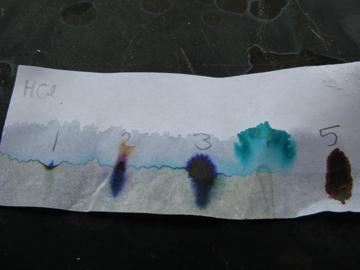

Hydrochloric Acid (~4%)

1	2	3	4	5
gone, yellow edge	almost gone, blue edge	almost gone, green edge	gone/upward drift	edge reddening

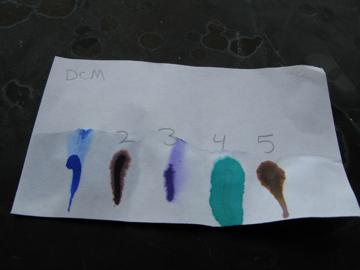

Dichloromethane

1	2	3	4	5
upward drift	feathering	upward drift/feathering	minor upward drift	yellow color separation

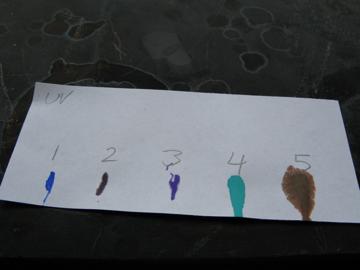

UV Exposure

1	2	3	4	5
NC	NC	NC	NC	NC

Discussion There is a great deal of information to be learned from these tests. What we are looking at is actually a very rudimentary form of thin layer chromotography. The paper acts as a stationary phase and the solvent as a mobile phase. The mobile phase moves our eluent along the capillaries within the paper fiber matrix. If we let this go for a long time, we would see the individual components separate from each other. There are better methods to perform that experiment though, and it was not in the scope of this one. The goal of the test was to determine the stability of the ink when in contact with the solvents. In doing this, we can learn something about the character of the ink. Different solvents have different polarities. The polarity of a molecule being the concentration of electrons on one side of an atom and exposed protons on the other side. We can relate these by a polarity index. Since "like dissolves like" if something is moved or dissolved by more polar solvents, then the material must be polar. So we can see that the Diamine ink is more polar than the quite nonpolar Baystate Blue based on what different solvents do to it. The Polar Brown ink interestingly slightly drifts in both polar and nonpolar solvents. If you look closely (probably not visible in pictures), you can see a yellow component separate out in nonpolar solvents and a red component separate out in polar solvents. These colors moving out of the bulk drop only slightly affect a color change in the brown. I chose the two acids to test here on purpose. We would expect the HCl to react mostly as an acid, whereas the HNO3 would react as both an acid and a strong oxidizer. Since both of the acids had similar effects on the inks, we can see that none of the inks oxidize easily - which speaks well for the permanence of these inks. Future tests would include solvents with polarity index of 0. The lack of change due to UV light is good, though this author would like to point out that this was not a very strong source. Future tests should attempt to use more powerful sources such as a laser.

A. Errata

All solvents were obtained from Pharmaco Aaper with purity >99.5% except the nitric acid, which was obtained from Fisher. All water used in the experiments was reagent grade, purified by reverse osmosis to resistance of >18Mohms. I would like to thank CPTBadass again for his donations and my advisor for being out of town this week so I could do silly experiments like this without getting yelled at. Thank you for reading, I would be happy to address any questions or comments you may have about this work.
