LaTeX: Drawing MOSFET in TikZ - Labels and Animation
Continuing from last week's post, this week we will be adding labels to our MOSFET in TikZ and adding slide animations with Beamer.
As a reminder, last week we drew our image of a MOSFET in Tikz before adding colors. The colors we added were based on the materials used in each part of the n-type MOSFET. Now let's add some labels to make sure that anyone we present this image to can understand what is going in.
Centered Labels
Now we take the code from last week and add "nodes" to certain of our shapes. We tell these nodes to have certain text and compile.
[code lang="latex"]\documentclass{beamer}
\usepackage{tikz}
\usetikzlibrary{patterns}
\title{\LaTeX~Surface Science and Electronics}
\author{Wesley T. Honeycutt}
\date{\today}
\newcommand{\metalone}{[pattern= horizontal lines, pattern color=blue]}
\newcommand{\metaltwo}{[pattern= vertical lines, pattern color=purple]}
\newcommand{\poly}{[pattern= grid, pattern color=red]}
\newcommand{\pdiff}{[pattern= north east lines, pattern color=orange]}
\newcommand{\ndiff}{[pattern= north west lines, pattern color=green]}
\newcommand{\pwell}{[pattern= crosshatch dots, pattern color=orange]}
\newcommand{\nwell}{[pattern= crosshatch dots, pattern color=green]}
\newcommand{\oxide}{[pattern = bricks, pattern color = olive]}
\newcommand{\silicon}{[fill = white]}
\newcommand{\metalthree}{[fill = teal]}
\begin{document}
\frame{\titlepage}
\frame{\frametitle{MOSFET}
% General n-type mosfet
\begin{tikzpicture}
\draw \pdiff (0,.25) -- (0,3) -- (1,3) -- (1,2.5) to [out=270,in=180] (1.5,2) -- (3.75,2) to [out=0,in=270] (4.25,2.5) -- (4.25,3) -- (6.75,3) -- (6.75,2.5) to [out=270,in=180] (7.25,2) -- (9.5,2) to [out=0,in=270] (10,2.5) -- (10,3) -- (11,3) -- (11,.25) -- (0,.25) node {p-type};
\draw \metalthree (0,0) rectangle (11,.25) node {Si Substrate};
\draw \oxide (4,3) rectangle (7,4) node {oxide};
\draw \metalone (4,4) rectangle (7,4.5);
\draw \ndiff (4.25,3) -- (1,3) -- (1,2.5) to [out=270,in=180] (1.5,2) -- (3.75,2) to [out=0,in=270] (4.25,2.5) -- (4.25,3) node {n-type};
\draw \ndiff (10,3) -- (6.75,3) -- (6.75,2.5) to [out=270,in=180] (7.25,2) -- (9.5,2) to [out=0,in=270] (10,2.5) -- (10,3) node {n-type};
\draw \metalone (1.25,3) rectangle (3,3.5);
\draw \metalone (8,3) rectangle (9.75,3.5);
\end{tikzpicture}
}
\end{document}
[/code]

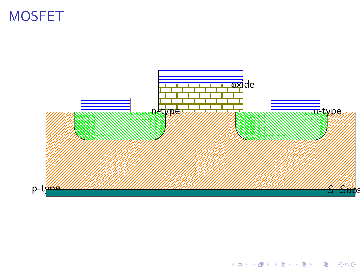

This gives us the following image with ill-placed text:
The text looks odd because the node location in TikZ defaults to the last point in the drawing. We can tell it to place the node in a certain location with respect to this anchor point. Additionally, I might want to change some other properties such as text color for my labels. This can all be done in brackets after declaring the node. Now my code becomes:
[code lang="latex"]\documentclass{beamer}
\usepackage{tikz}
\usetikzlibrary{patterns}
\title{\LaTeX~Surface Science and Electronics}
\author{Wesley T. Honeycutt}
\date{\today}
\newcommand{\metalone}{[pattern= horizontal lines, pattern color=blue]}
\newcommand{\metaltwo}{[pattern= vertical lines, pattern color=purple]}
\newcommand{\poly}{[pattern= grid, pattern color=red]}
\newcommand{\pdiff}{[pattern= north east lines, pattern color=orange]}
\newcommand{\ndiff}{[pattern= north west lines, pattern color=green]}
\newcommand{\pwell}{[pattern= crosshatch dots, pattern color=orange]}
\newcommand{\nwell}{[pattern= crosshatch dots, pattern color=green]}
\newcommand{\oxide}{[pattern = bricks, pattern color = olive]}
\newcommand{\silicon}{[fill = white]}
\newcommand{\metalthree}{[fill = teal]}
\begin{document}
\frame{\titlepage}
\frame{\frametitle{MOSFET}
% General n-type mosfet
\begin{tikzpicture}
\draw \pdiff (0,.25) -- (0,3) -- (1,3) -- (1,2.5) to [out=270,in=180] (1.5,2) -- (3.75,2) to [out=0,in=270] (4.25,2.5) -- (4.25,3) -- (6.75,3) -- (6.75,2.5) to [out=270,in=180] (7.25,2) -- (9.5,2) to [out=0,in=270] (10,2.5) -- (10,3) -- (11,3) -- (11,.25) -- (0,.25) node [midway,above] {p doped Si};
\draw \metalthree (0,0) rectangle (11,.25) node [midway, color=white]
{Si Substrate};
\draw \oxide (4,3) rectangle (7,4) node [pos=.5,font=\bf\Large] {oxide};
\draw \metalone (4,4) rectangle (7,4.5);
\draw \ndiff (4.25,3) -- (1,3) -- (1,2.5) to [out=270,in=180] (1.5,2) -- (3.75,2) to [out=0,in=270] (4.25,2.5) -- (4.25,3) node at (2.625,2.5) [align=center] {n-type};
\draw \ndiff (10,3) -- (6.75,3) -- (6.75,2.5) to [out=270,in=180] (7.25,2) -- (9.5,2) to [out=0,in=270] (10,2.5) -- (10,3) node at (8.375,2.5) [align=center] {n-type};
\draw \metalone (1.25,3) rectangle (3,3.5);
\draw \metalone (8,3) rectangle (9.75,3.5);
\end{tikzpicture}
}
\end{document}
[/code]
In this case, I have added some alignment options for different locations.
For the silicon substrate, I have told the node [midway, color=white] so the text appears in the middle of the rectangle and white to show up against the color of metalthree
For the p doped region, I have told the node [midway,above] so that the text is in the middle of the picture and at the bottom. Notice how midway does not place the text at the true center of custom shapes. It only knows to place it relative to the previous line.
For the n doped regions, I did not want the text to sit relative to the line, I wanted it to be in the center of the shape. Thus, I told the node to be at a certain set of coordinates which I calculated to be the center of that shape, and set [align=center].
For the oxide layer, I wanted the text to show up against the oddly colored bricks. Therefore, I used [pos=.5,font=\bf\Large]. The "pos=.5" argument is functionally the same as "midway", but offers greater freedom to customize. The font arguments tell the node to use text in boldface with a Large size.

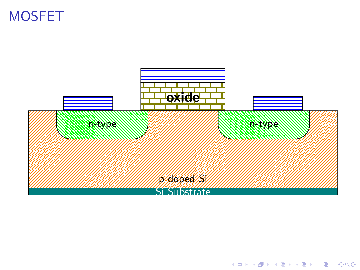

The image ends up looking like this:
Labels on Arrows
I've decided that I want to label the metal connections on our MOSFET, but I don't want to place the text directly over the shape. Instead, I want to tell TikZ to draw little arrows pointing to what is labeled. This is easy. We just draw a line, which we tell to have an arrowhead, from a point to another point. At the first point, we tell it to have a label. I have used:
[code lang="latex"]\draw [->] (1,5) node [above] {Source} -- (2.125,3.5);
\draw [->] (10,5) node [above] {Drain} -- (8.975,3.5);
\draw [->] (5.5,5) node [above] {Gate} -- (5.5,4.5);
[/code]
Which when implemented, looks like this:
Animation with Beamer
Did you know that the same person that wrote TikZ wrote Beamer, the LaTeX slideshow creator? It's true. This makes things quite convenient, as the author has designed it such that it is easy to integrate slide animations into your TikZ code.
For the final part of our MOSFET in TikZ, I'm going to add some animation. I want to make it obvious to the viewer how my MOSFET works going from the off state to saturation mode. I will do this by adding nodes to present the voltage relationship of each state on the screen, then pop up an image of the electron rich areas of the MOSFET. This is very easy to do with \only. Check out the final code below:
[code lang="latex"]\documentclass{beamer}
\usepackage{tikz}
\usetikzlibrary{patterns}
\title{\LaTeX~Surface Science and Electronics}
\author{Wesley T. Honeycutt}
\date{\today}
\newcommand{\metalone}{[pattern= horizontal lines, pattern color=blue]}
\newcommand{\metaltwo}{[pattern= vertical lines, pattern color=purple]}
\newcommand{\poly}{[pattern= grid, pattern color=red]}
\newcommand{\pdiff}{[pattern= north east lines, pattern color=orange]}
\newcommand{\ndiff}{[pattern= north west lines, pattern color=green]}
\newcommand{\pwell}{[pattern= crosshatch dots, pattern color=orange]}
\newcommand{\nwell}{[pattern= crosshatch dots, pattern color=green]}
\newcommand{\oxide}{[pattern = bricks, pattern color = olive]}
\newcommand{\silicon}{[fill = white]}
\newcommand{\metalthree}{[fill = teal]}
\begin{document}
\frame{\titlepage}
\frame{\frametitle{MOSFET}
% General n-type mosfet
\begin{tikzpicture}
\draw \pdiff (0,.25) -- (0,3) -- (1,3) -- (1,2.5) to [out=270,in=180] (1.5,2) -- (3.75,2) to [out=0,in=270] (4.25,2.5) -- (4.25,3) -- (6.75,3) -- (6.75,2.5) to [out=270,in=180] (7.25,2) -- (9.5,2) to [out=0,in=270] (10,2.5) -- (10,3) -- (11,3) -- (11,.25) -- (0,.25) node [midway,above] {p doped Si};
\draw \metalthree (0,0) rectangle (11,.25) node [midway, color=white]
{Si Substrate};
\draw \oxide (4,3) rectangle (7,4) node [pos=.5,font=\bf\Large] {oxide};
\draw \metalone (4,4) rectangle (7,4.5);
\draw \ndiff (4.25,3) -- (1,3) -- (1,2.5) to [out=270,in=180] (1.5,2) -- (3.75,2) to [out=0,in=270] (4.25,2.5) -- (4.25,3) node at (2.625,2.5) [align=center] {n-type};
\draw \ndiff (10,3) -- (6.75,3) -- (6.75,2.5) to [out=270,in=180] (7.25,2) -- (9.5,2) to [out=0,in=270] (10,2.5) -- (10,3) node at (8.375,2.5) [align=center] {n-type};
\draw \metalone (1.25,3) rectangle (3,3.5);
\draw \metalone (8,3) rectangle (9.75,3.5);
\draw [->] (1,5) node [above] {Source} -- (2.125,3.5);
\draw [->] (10,5) node [above] {Drain} -- (8.975,3.5);
\draw [->] (5.5,5) node [above] {Gate} -- (5.5,4.5);
\only<1> {\node at (5.5,-.5) [align=center] {$V_{GS} < V_{threshold}$};}
\only<2-3> {\node at (5.5,-.5) [align=center] {$V_{GS} \geq V_{threshold}$};
\node at (5.5,-1) [align=center] {$V_{DS} < V_{GS} - V_{threshold}$};
}
\only<3> {\draw [fill=white] (4.25,3) rectangle (6.75,2.5);
\draw \ndiff (4.25,3) rectangle (6.75,2.5);
}
\only<4-5> {\node at (5.5,-.5) [align=center] {$V_{GS} \geq V_{threshold}$};
\node at (5.5,-1) [align=center] {$V_{DS} = V_{GS} - V_{threshold}$};
}
\only<5> {\draw [fill=orange,orange] (4.25,3) rectangle (6.75,2.5);
\draw [fill=white] (4.25,3) -- (4.25,2.65) -- (6.75,3) -- (4.75,3);
\draw \ndiff (4.25,3) -- (4.25,2.65) -- (6.75,3) -- (4.75,3);
}
\only<6-7> {\node at (5.5,-.5) [align=center] {$V_{GS} \geq V_{threshold}$};
\node at (5.5,-1) [align=center] {$V_{DS} > V_{GS} - V_{threshold}$};
}
\only<7> {\draw [fill=orange,orange] (4.25,3) rectangle (6.75,2.5);
\draw [fill=white] (4.25,3) -- (4.25,2.85) -- (6.75,3) -- (4.75,3);
\draw \ndiff (4.25,3) -- (4.25,2.85) -- (6.75,3) -- (4.75,3);
}
\end{tikzpicture}
}
\end{document}
[/code]
Each time I add an \only, I put slide numbers in pointed braces. The code between the curly braces will "only" show up on the slides listed in the pointed braces. The result of this code is shown in the following gif:
Wrap Up
I know that creating a MOSFET in TikZ is a bit specific. Still, I hope that this little tutorial gives everyone a feel for how to take make nice scale-able images in LaTeX using TikZ.
